GitLab + Jenkins CI/CD: Project and Webhook Setup (Part 2)

GitLab basic settings

Korean language

Approve users as admin

Log in as admin
Open the menu toggle (top left) → Admin (admin page below)
Dashboard → Users → Pending approval → Approve

Create group and project

Create group: Admin page → Groups → New group → create group1.

Add members: Admin page → Groups → Add users to group.

Create project: Admin page → Projects → New project → Create blank project → create test.

Change and add branches

In the test project: Settings → Repository → Default branch → change main to another name (e.g. dev)

Files → Branches → New branch → add release

Unprotect the default branch (allow force push)

test project → Settings → Repository → Protected Branches → Expand → Unprotect.

Create a GitLab token

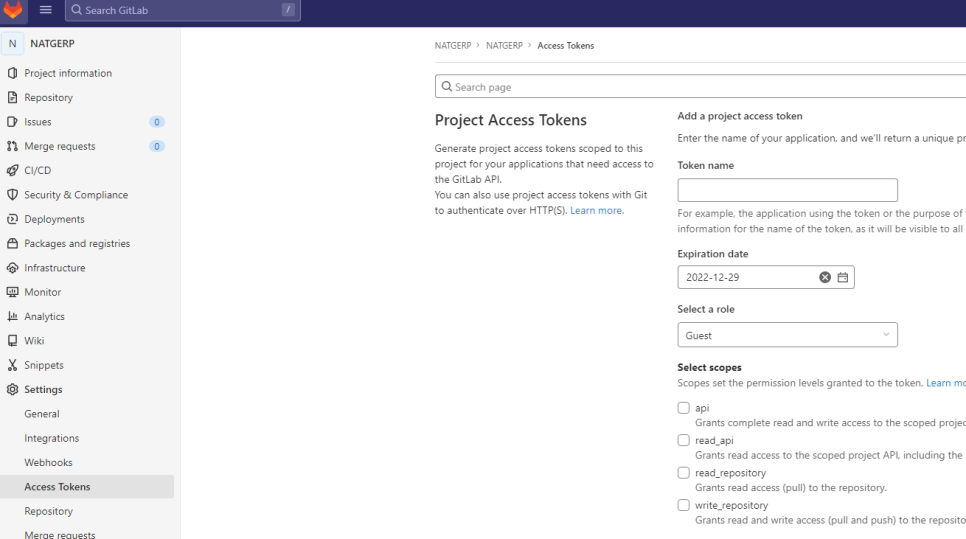

test project → Settings → Access tokens → check all permissions → create
You get a token starting with glpat-

GitLab webhook settings (1)

Allow webhooks to the local network: Admin page → Settings → Network → Outbound requests → enable Allow requests to the local network from web hooks and services.

Jenkins basic settings

Install plugins

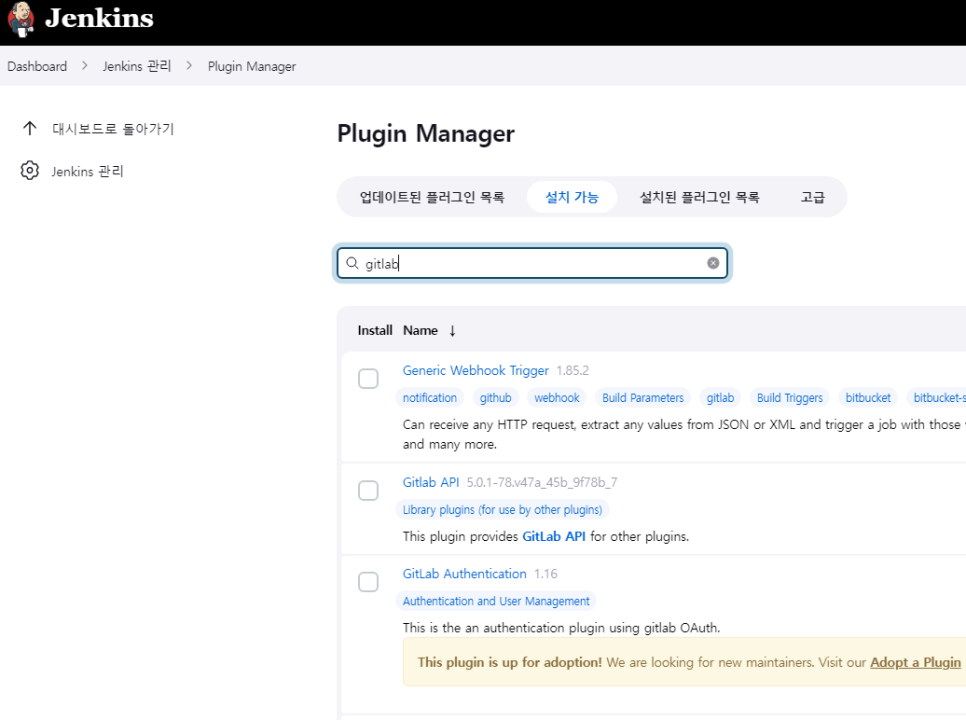

Manage Jenkins → Plugins → Available plugins → search and install git server and gitlab.

Tool configuration

Manage Jenkins → Global Tool Configuration:

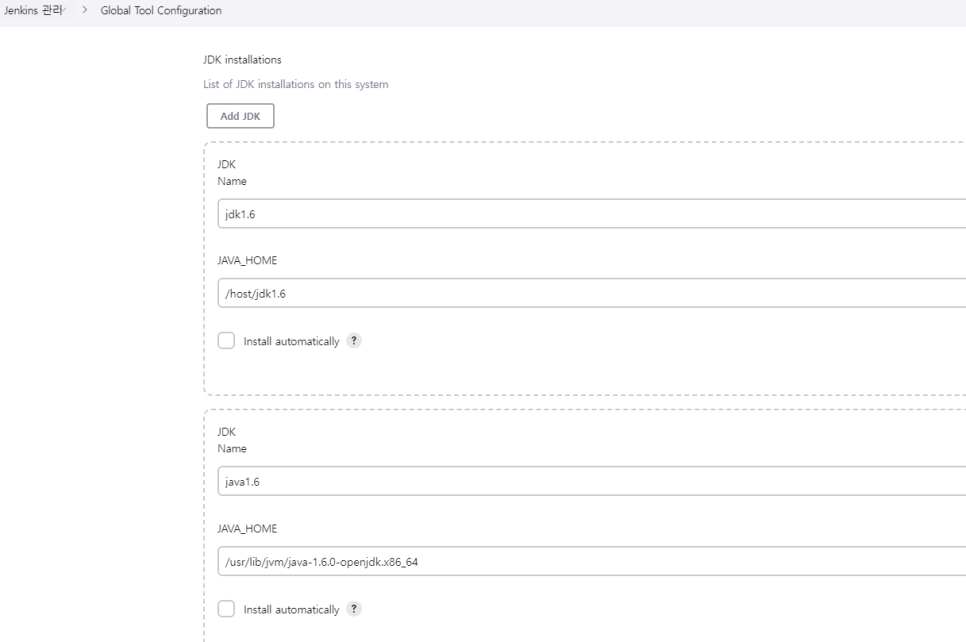

JDK — enter the path of an already installed JDK (e.g. /usr/bin/java), or choose an installable version (Install automatically requires an Oracle login).
Check with readlink /etc/alternatives/java or alternatives --config java.
Git — name: default, path: git

System settings — GitLab credentials

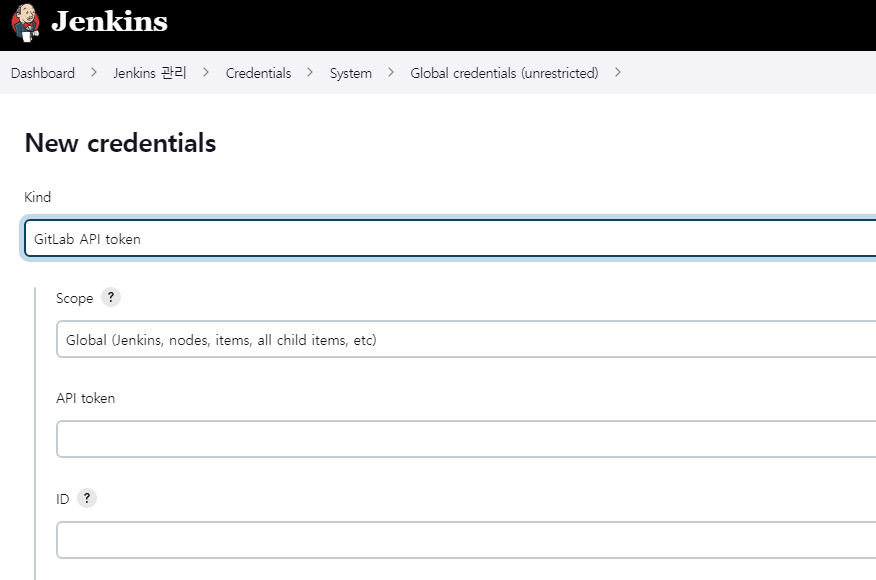

Manage Jenkins → Manage credentials → System → Global credentials → Add Credentials → GitLab API token → paste the glpat- token → create.

Pipeline GitLab credentials

Manage Jenkins → Manage credentials → System → Global credentials → Add Credentials → Username with password → enter the GitLab root account → create.

GitLab connection

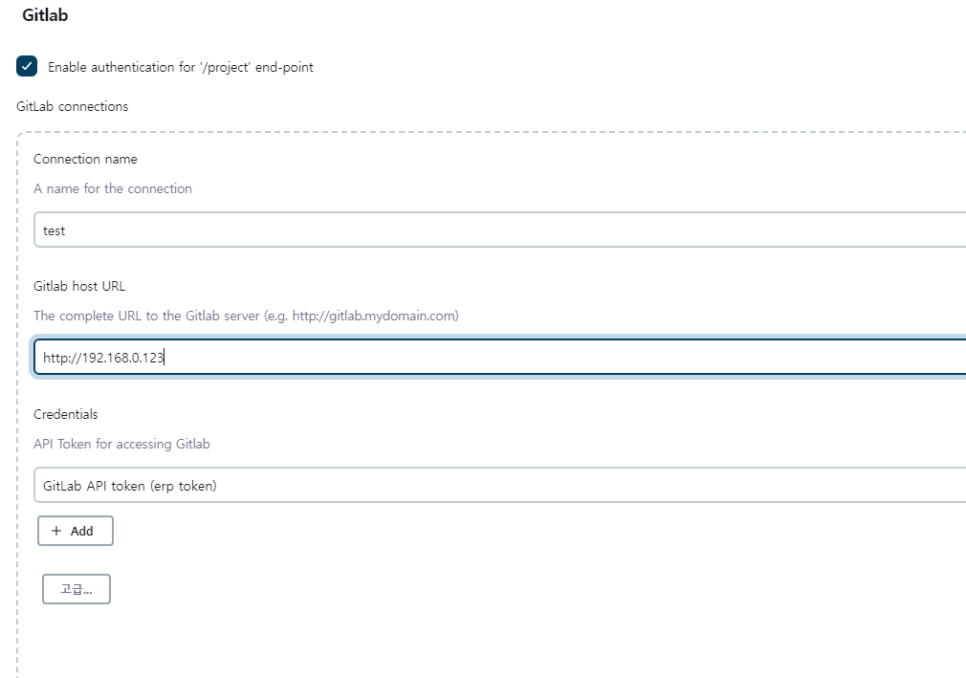

Manage Jenkins → System → GitLab → enter the GitLab host IP → Credentials → select the GitLab API token → Test connection.

Create a pipeline

Create a pipeline named test_pipeline:

Manage Jenkins → New Item → Pipeline

Select the GitLab connection you created
Build Triggers → check Build when a change is pushed to GitLab. GitLab webhook URL example: http://HOST_IP:8888/project/test

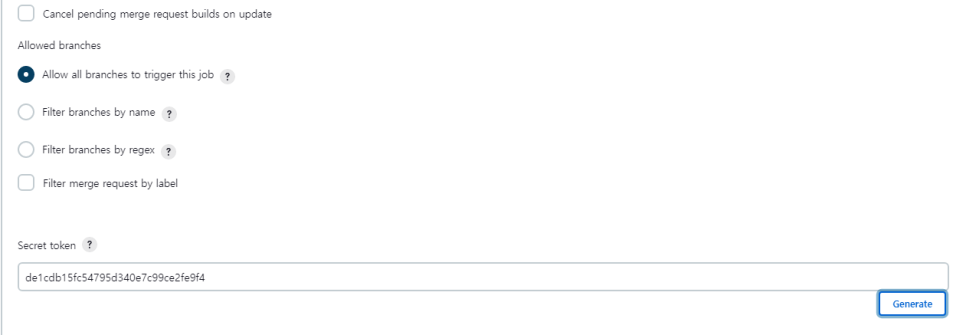

Advanced → Secret token → Generate (example: bd4ac97175546df0)

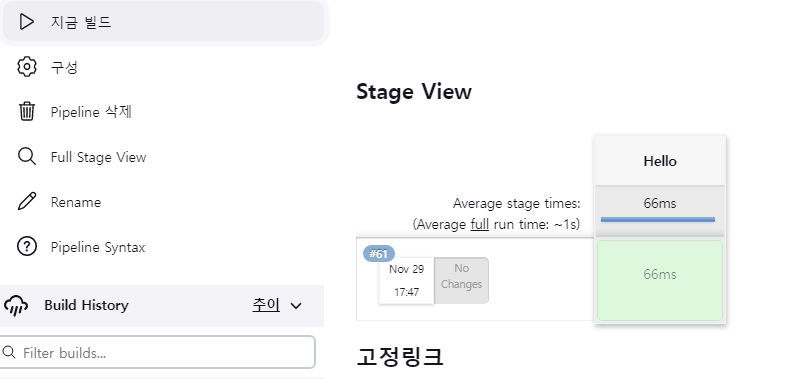

Pipeline → Pipeline script → try sample pipeline → Hello World → Save

GitLab webhook settings (2)

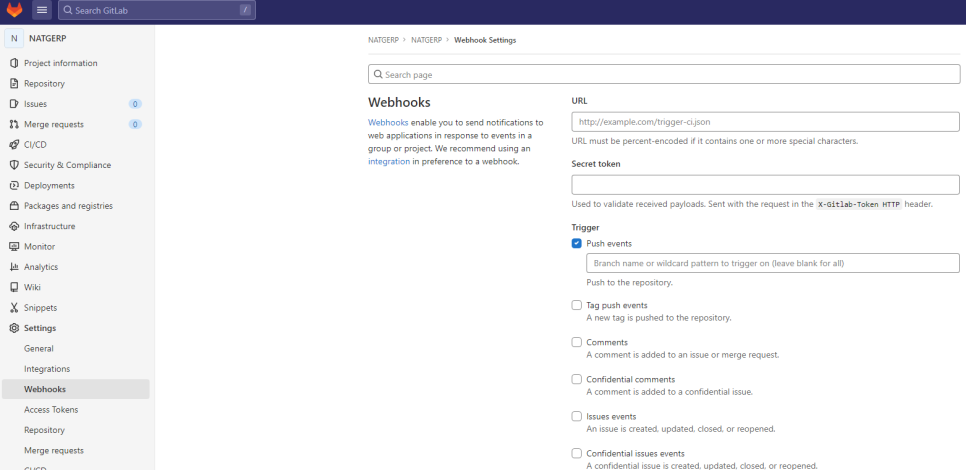

Admin page → Projects → Settings → Webhooks:

URL: http://HOST_IP:8888/project/test
Secret token: bd4ac97175546df0
Under Push events, enter dev in the branch filter box
Enable Enable SSL verification
Save → Test → Push events
