Put RabbitMQ Between Microservices

This post focuses on the concept: what a message broker is, how it fits microservices (MSA), and when to use it instead of HTTP. Spring Boot snippets are short – enough to see how producers and consumers attach.

When you split a monolith into services – orders, payments, inventory, notifications – and call everything with REST, a few problems show up:

• If the notification service is briefly down, the order API can look like it failed too.
• Slow work (sending email) makes users wait on the "Place order" button.
• Many services need to know "an order happened," so the order service must know every URL.

A message broker like RabbitMQ is a different tool from "call them on the phone now" (HTTP). It is closer to leaving a note or a parcel for later.

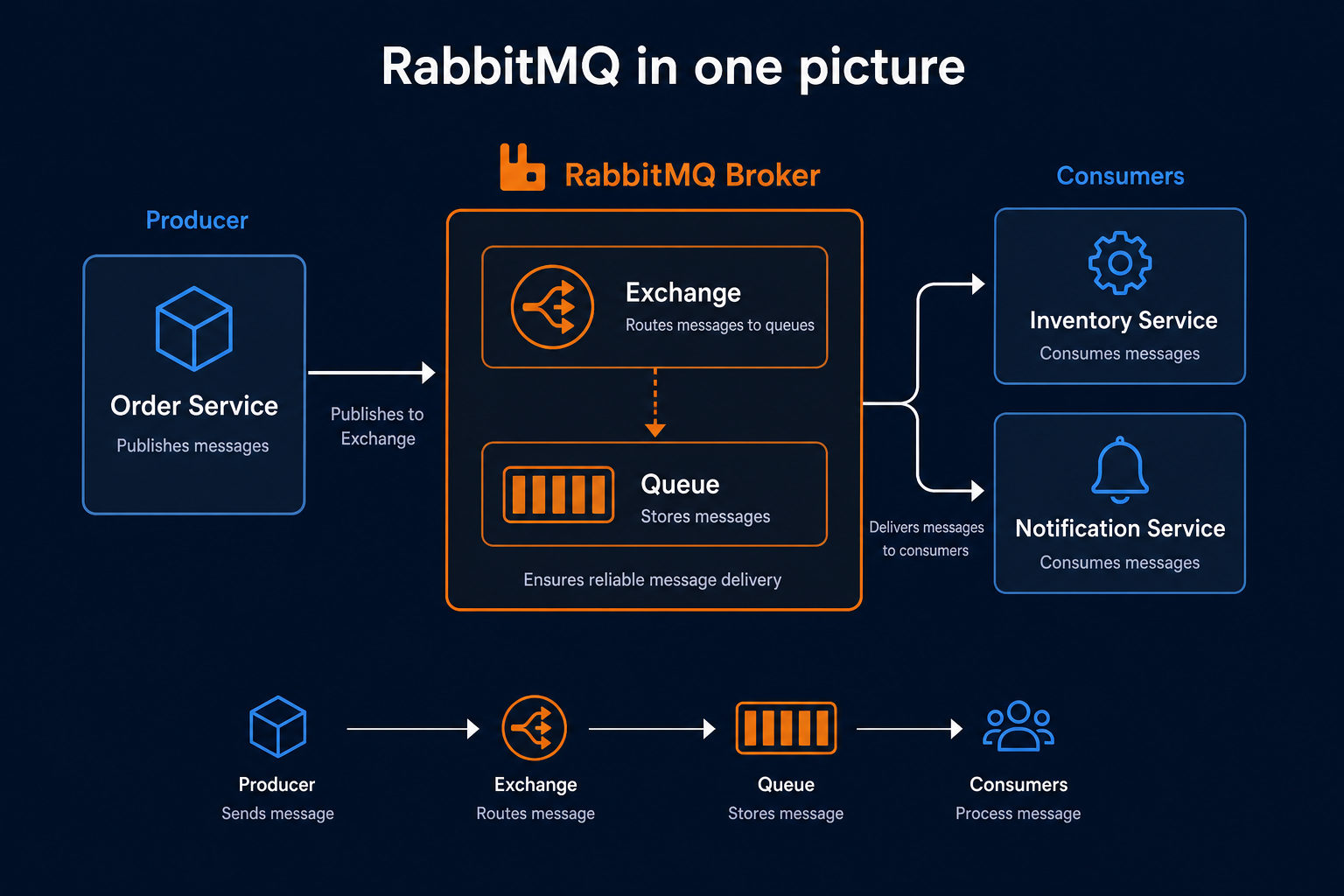

RabbitMQ in one picture

Role	Job	Analogy
Producer	Sends a message	Person dropping a "please do this" note
Exchange	Decides which queues get it	Post office sorter
Queue	Holds messages until work starts	Parcel locker
Consumer	Takes messages and processes them	Worker who opens the parcel

Order service (Producer) -> Exchange -> Queue -> Inventory / Notification (Consumers)

Consumers subscribe to RabbitMQ and pull messages as they arrive.

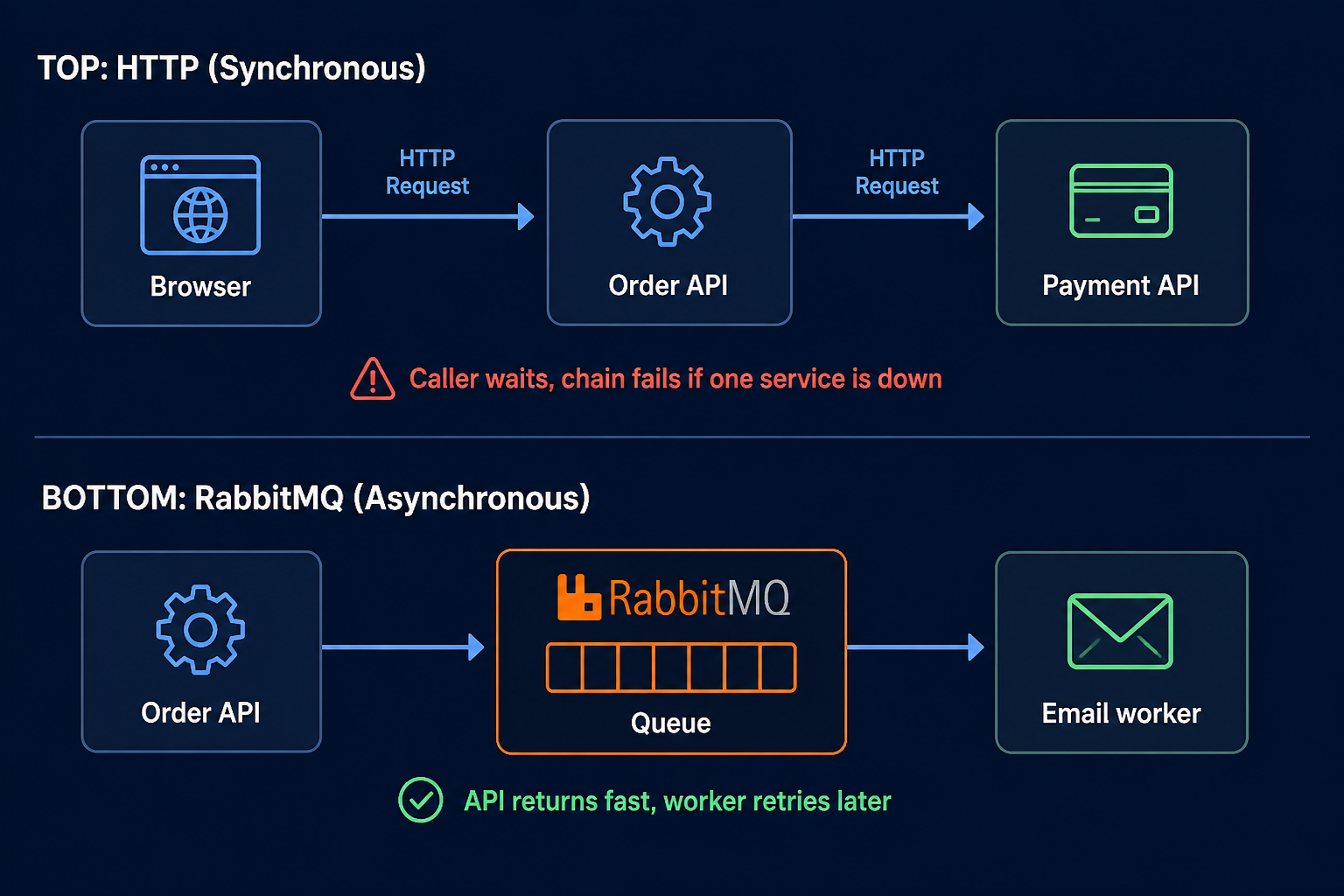

How is this different from HTTP?

	HTTP (REST)	RabbitMQ
Timing	Sync – wait for the other side	Async – put it on a queue; work happens later
Coupling	Caller must know the other service URL	Caller only needs the event or queue name
Failure	Peer down -> immediate error	Messages sit in the queue until consumers recover
Good fit	Reads, "is this payment approved now?"	Email, push, search sync, audit logs

You use both. All-MQ or all-REST is rare. In practice: HTTP when you need an answer now, MQ when the work can wait.

Two patterns in MSA

1) Task queue – "Do this job." Several consumers compete for one queue (thumbnails, PDF, email send).

2) Events (pub/sub) – "This happened." One publish, many services each get their own queue (OrderCreated -> stock, notify, analytics).

The order walkthrough below is pattern 2. For pattern 1, remember: workers share one queue and divide the work.

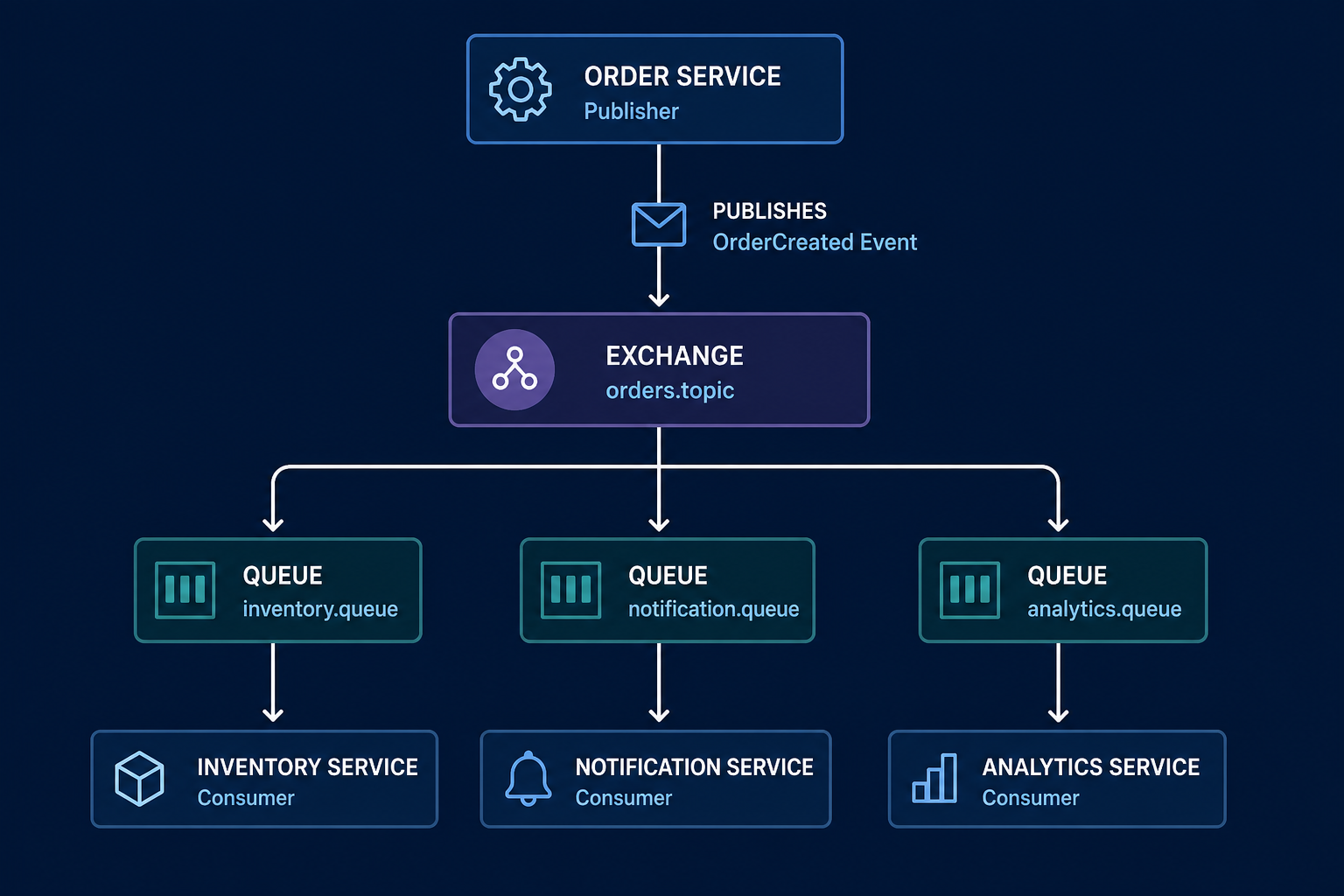

Order example

1. User hits the order API -> order saved in the DB.
2. Order service publishes to RabbitMQ:

{
  "event": "OrderCreated",
  "orderId": "ord-123",
  "userId": "u1",
  "amount": 9900
}

3. Inventory service – consumes its queue and decreases stock.
4. Notification service – consumes its queue and sends "order received" email/push.
5. Analytics / logging (optional) – same event, separate queue.
6. The order API returns 201 after step 2 – the user does not wait for email to finish.

The order service does not need inventory or notification URLs. It needs the exchange name and message shape. That is loose coupling in MSA.

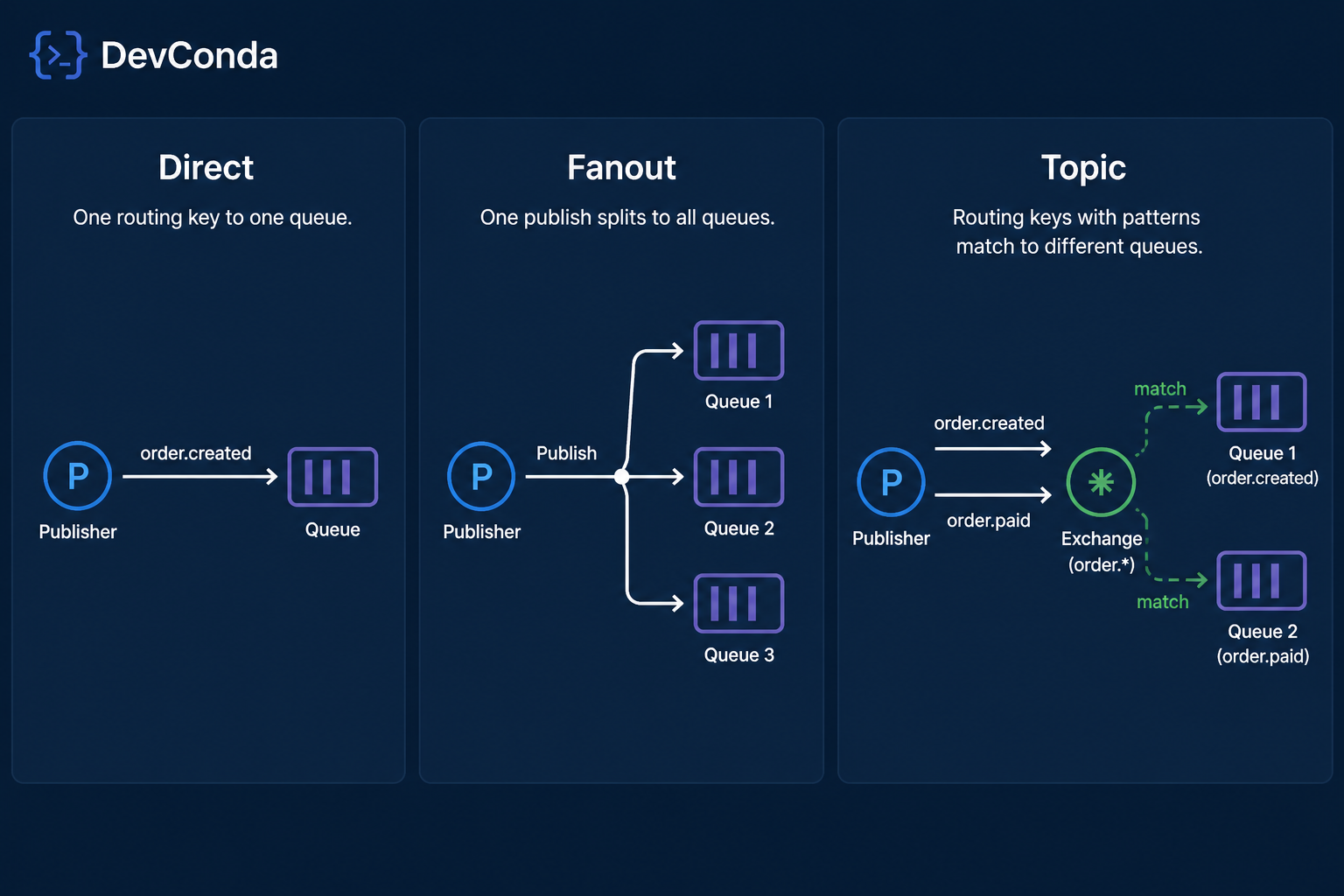

Exchange types (names to know)

Type	One line	Example
Direct	Exact routing key match	order.created -> one post-order queue
Fanout	Copy to every bound queue	UserRegistered -> email, points, logs
Topic	Patterns like order.*	Domain event hub

Event hubs often use Topic or Fanout. Simple job queues often use Direct plus a dedicated queue.

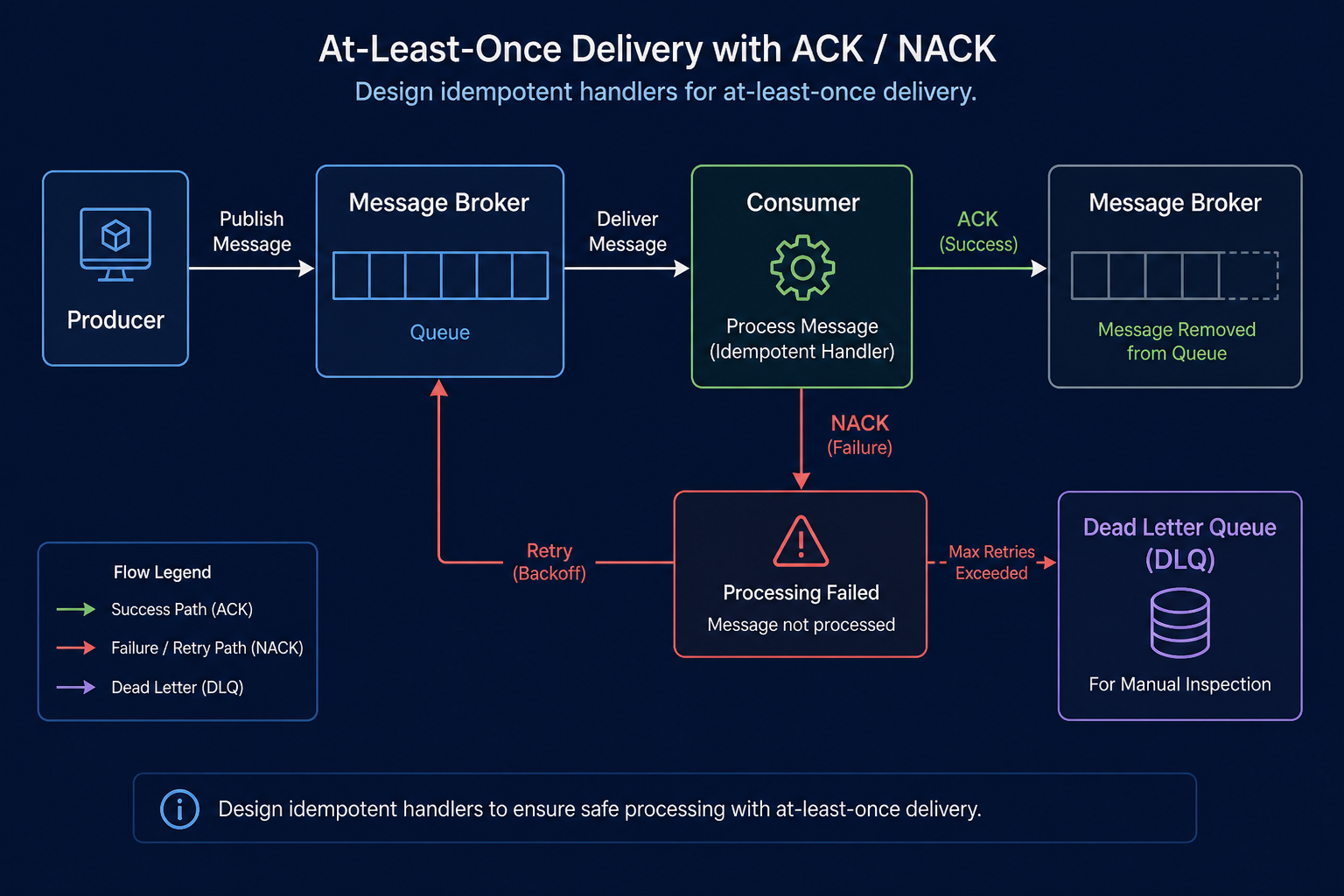

Ack, DLQ, and idempotency

• Ack (acknowledge) – consumer tells the broker "done"; then the message leaves the queue.
• At-least-once – the same message may arrive twice after retries -> design for idempotency (same orderId applied once).
• DLQ (Dead Letter Queue) – messages that fail repeatedly are isolated for manual review.
• Prefetch – how many messages a consumer takes at once (avoid overloading one worker).

How it looks in Spring Boot

Producer:

rabbitTemplate.convertAndSend("orders.topic", "order.created", event);

Consumer:

@RabbitListener(queues = "inventory.order-created")
public void onOrderCreated(OrderCreatedEvent event) {
    inventoryService.decrease(event.orderId());
}

Local RabbitMQ is often one Docker command:

docker run -d --name rabbitmq -p 5672:5672 -p 15672:15672 rabbitmq:3-management

• 5672 – AMQP for apps
• 15672 – management UI (inspect queues in the browser)

RabbitMQ vs Kafka (one line)

	RabbitMQ	Kafka
Role	Business messages and job queues	Event streams / logs
Messages	Usually removed after ack	Kept on topics; can replay
Fit	Notify, post-order work, mid-size MSA	High volume, analytics, replay

For many teams starting with "after order: notify + inventory," RabbitMQ is a common first choice.

When RabbitMQ is a good fit

• Return the API response fast; do heavy work in the background.
• Several services must each react to the same event.
• You want more throughput by adding consumer instances.
• A peer can be briefly down and work can finish later.

If you need an answer right now (payment approval), use HTTP or gRPC.

Out of scope here

• RabbitMQ cluster HA and quorum queues
• Full Saga / compensation design
• Migrating to Kafka

A natural follow-up post: Spring Boot + RabbitMQ with local Docker, end to end.
